How to Design a Multi-Vial Kit Box

Kit boxes are the format where the most goes wrong, because they have to satisfy three different requirements that pull in different directions: protect the contents, communicate an order of use, and still look intentional when half of the vials have been taken out.

Start with every component, not the main one

The most common kit failure is an insert designed around the principal vial, with everything else fitted in afterwards.

A diluent vial, an ampoule, a syringe and a leaflet all need their own cavity profile, and each behaves differently:

• A vial has a flat base — a punched hole or a milled cavity works, with the base resting on the box floor.
• An ampoule has no flat base — it needs a curved cradle supporting it along its length, not a hole to stand in.
• A syringe is long with a wide plunger flange — it needs a channel with relief at the flange end.
• A leaflet should sit beneath the insert deck, not beside the vials where it can slide under one and lift it out.
• Swabs and small accessories need their own shallow recess, otherwise they migrate.

Send every item at the start, including anything you are unsure about including. Adding a component later usually means redesigning the insert and sometimes the carton.

Layout: square or row?

For any count above two there is more than one arrangement, and the choice communicates something as well as costing something.

A grid reads as a set of equals. It is the cheapest to ship, stacks best, and uses the least board per unit of volume.

A single row reads as a sequence. It displays better and implies an order of use, and it costs materially more to ship because a long box lands in higher dimensional weight bands.

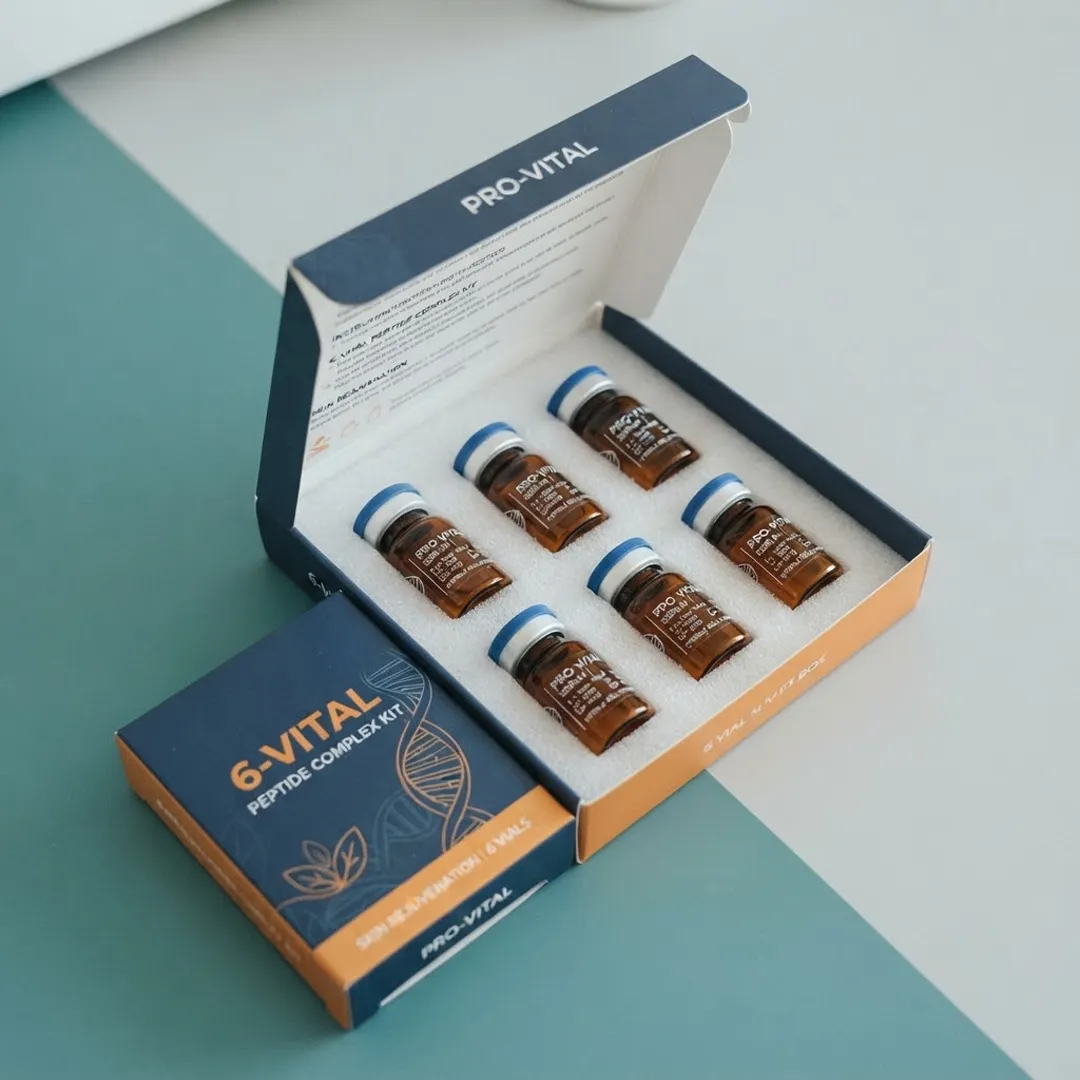

Six vials illustrates it well. Two rows of three gives roughly a 130 × 95 mm footprint; a single row of six gives roughly 190 × 45 mm. The second looks better open and costs more on every parcel.

If the order of use genuinely matters to the user, a row earns its cost. If it does not, the grid usually wins.

A third option worth knowing: a grid with a channel down the middle for a syringe or a leaflet. That is nearly always cheaper than making the box longer.

Design for the half-used state

This is the test most kit boxes fail.

A pack looks good in a photograph when it is full. For most of its life it is partly empty, and that is the state the customer sees. Packs that fail here share a pattern: a shared tray with shallow depressions, so remaining vials tip into the empty spaces.

What fixes it:

• Individual cavities deep enough that a lone vial cannot topple into an empty neighbour
• A regular grid, so remaining quantity is obvious at a glance
• Printed position numbering, so a partly used pack still reads correctly
• Cavity retention that does not depend on neighbouring vials

Making the kit understandable

With four or more positions, the user needs to know which is which, and packaging is where that happens.

In order of how well each works:

1. Printed position labels on the insert. Directly beside each cavity, unambiguous, and the cheapest option available.
2. A diagram on the inner lid. Faces the user the whole time the box is open — provided the structure has a hinged or lift-off lid.
3. A printed card. More space than a lid, but easily discarded.
4. Text on the outer panels. Read before opening, so better for identification than for instruction.

Two practical warnings. First, a lid diagram must match the physical orientation of the cavities as the box actually opens — a mirrored map is worse than none. Second, numbering must be consistent across the lid, the insert and the vial labels, which means producing all three together.

The load path

Once a kit holds several filled vials, weight becomes a structural question rather than a packaging one.

A plain tuck-in bottom flap puts the entire load on a glued flap, which is the first thing to fail in a drop. From about four filled 5ml vials upward, that is not adequate.

The alternatives, in rough order of cost:

• Auto-lock bottom carton — the base locks itself and carries load properly. Still ships flat.
• Two-piece lid and base — base walls carry the weight, no glued seam in the load path.
• Sleeve and tray — the tray flange rests on the box walls, transferring load into them. Also the best structure for keeping a part-used pack organised.
• Rigid magnetic — same strength, plus a closure that survives repeated opening.

Cavities or a tray?

Around six positions, the economics flip.

Cutting six individual cavities into a foam block removes a lot of material you still pay for and leaves thin webs between the pockets. A tray — formed, folded or die-cut as one piece — supports across the whole footprint using less material, holds its shape better, and is one placement rather than six on a packing line.

Below six, individual cavities are usually cheaper. Above six, a tray usually wins on both material and labour. It is worth having both quoted at your actual volume rather than assuming.

A workable sequence

1. Gather every component that will share the box.
2. Decide whether order of use matters — this settles grid versus row.
3. Fix the layout, then let the die line follow from it.
4. Choose the structure against the loaded weight.
5. Choose cavities or a tray against the count and the volume.
6. Decide where sequence information goes, before artwork starts.
7. Approve a loaded sample — then take three vials out and look at it again.

That last step takes ten seconds and catches the problem that photographs never show.
