HCG Vial Boxes

Three components, three cavity profiles

Each component in these kits needs a different approach, and using the same profile for all three is the most common reason a kit insert fails.

• The vial — A flat base and a cylindrical body. A punched hole or a milled cavity both work; the base rests on the box floor.
• The ampoule — No flat base and a tapered neck. It needs a cradle — a curved trough supporting it along its length rather than a hole to stand in.
• The syringe — Long and thin with a wide plunger flange. It needs a channel with a relief at the flange end.
• Separation between them — Glass ampoules are thinner than vials and break more easily. A wall between components is not optional here.

Kit layouts

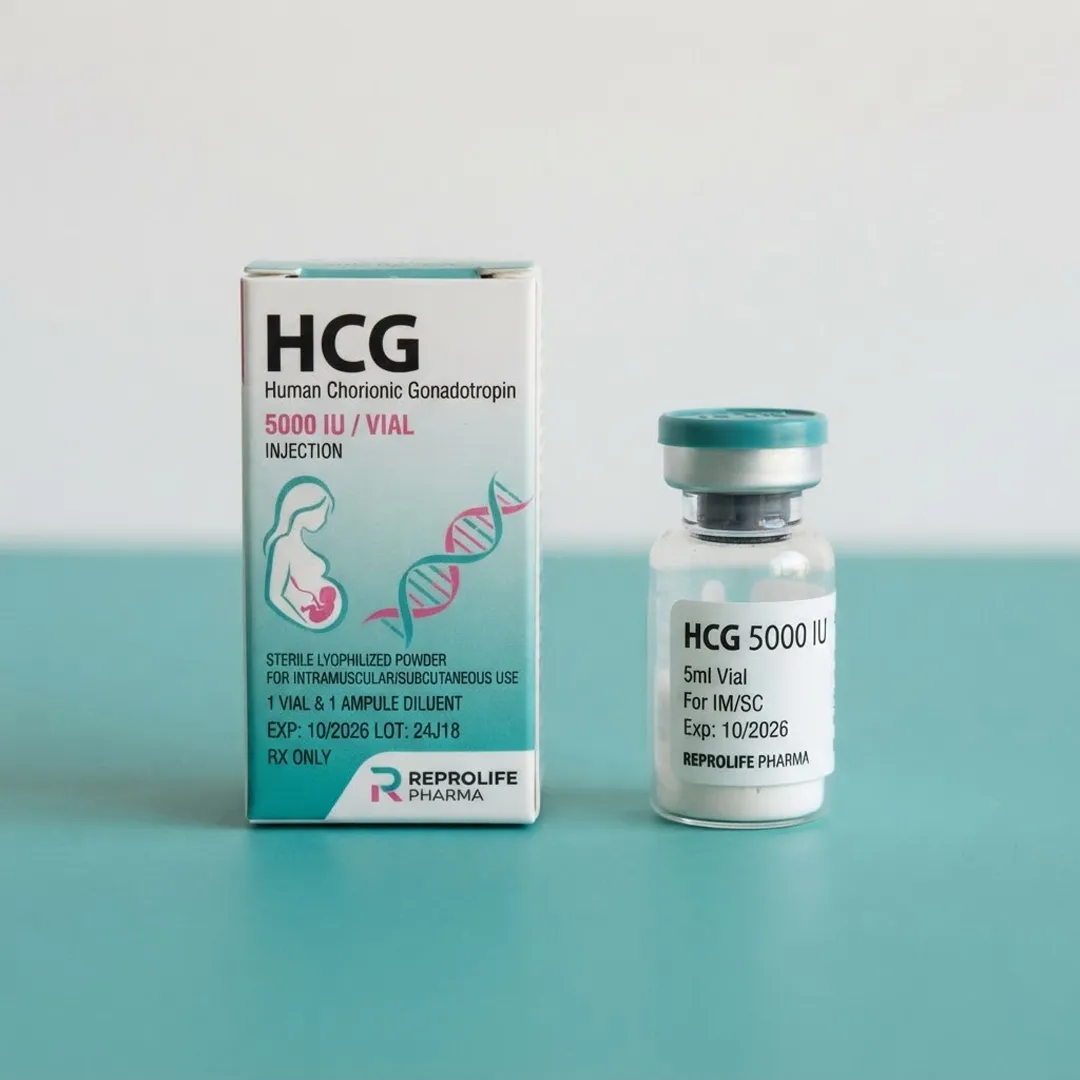

• Vial and ampoule side by side — The most common. A wide shallow carton with two profiles in one insert.
• Vial, ampoule and syringe — A three-position insert, usually with the syringe channel along one edge.
• Multiple vials with shared diluent — Several vial cavities and one larger diluent position.
• Stacked layout — Components on two levels with an interleaf, where footprint matters more than access.

For kits where a diluent vial replaces the ampoule, the layout logic is the same but the cavity is simpler — that case is covered on the 2-vial kit boxes page.

Protecting a glass ampoule

Ampoules deserve particular attention because they are the weakest item in most kits.

• Full-length cradle — Supporting the ampoule along its body rather than at one point.
• Foam rather than board — A foam cradle absorbs impact; a folded board cradle only locates.
• Neck clearance — The scored neck should not bear on the insert.
• No contact with the vial — A wall between the two, always.
• Lid pad — A thin foam layer in the lid removing vertical movement.

Carton structures

• Straight tuck end — For simple two-component kits.
• Two-piece lid and base — Loads easily and presents all components at once.
• Flip top — Keeps the lid attached, which suits a kit assembled at the point of use.
• Sleeve and tray — A drawer holding a multi-position tray.
• Auto-lock carton — For multi-vial kits where loaded weight is higher.

For kits assembled at the point of use, a structure whose lid cannot be mislaid is worth the small premium — see hinged flip top boxes.

Materials

• SBS paperboard — The standard for kit cartons; prints component listings cleanly.
• Rigid chipboard — For presentation kits and practitioner-facing packs.
• Kraft paperboard — A plain, functional look for laboratory and research supply.
• E-flute corrugated — For multi-kit trade cases.
• Recyclable paper-based stock — Available when paired with paperboard cradles rather than foam.

Kit cartons carry more weight than their size suggests once every position is filled, which is why board is specified against the loaded pack — see the caliper guidance.

Printing and component identification

A kit with three unlike components needs the user to know which is which, and the packaging is where that happens.

• Printed position labels — Component names printed beside each cavity on the insert.
• Inner lid diagram — A map of the cavity layout, printed where it faces the user.
• Component list panel — A printed panel on the carton listing contents.
• Distinct vial and ampoule labels — So the two are not confused at the point of use.
• CMYK or PMS — Whichever suits your brand consistency requirements.

What those labels and lists say is your content and your responsibility. We reproduce it; we do not draft or review it.

Finishing

• Matte lamination — The usual specification; also accepts applied labels reliably.
• Aqueous coating — Where the carton should stay in a paper recycling stream.
• Spot UV — On a logo, where the pack is brand-facing.
• Soft-touch — For presentation kits sold to practitioners or direct to consumers.

Ordering a kit carton

• 1. Send every component — Vial, ampoule, syringe, swabs — all of them. Missing one changes the whole insert.
• 2. Confirm the layout — Side by side, three-position or stacked, depending on footprint and access.
• 3. Insert material — Foam for the ampoule cradle unless cost rules it out.
• 4. Loaded sample — Every component seated, then inverted and shaken.
• 5. Production — Cartons printed and cut, inserts produced, components supplied to match.

Artwork responsibility

• We reproduce artwork you supply and approve; we do not author it.
• We do not review packaging or label content for regulatory compliance.
• Our preflight checks cover production issues only.
• What must appear on your kit packaging is your responsibility to determine.

Quality control

• Every cavity profile is tested with its actual component.
• Ampoule cradles are checked for neck clearance.
• Dividing walls are verified for thickness.
• Printed position labels are checked against the approved cavity map.
• Loaded kits are inverted and shaken before release.

Packaging supply scope

• Peptides Boxes supplies empty cartons, inserts, trays and labels.
• No HCG, diluent, ampoule, syringe, medication or vial content is supplied with any order.
• We are not affiliated with any pharmaceutical manufacturer or brand owner.
• Customers are responsible for all legal, labelling, testing, storage, shipping and regulatory obligations.
