Custom Window Peptide Boxes

How a window is made

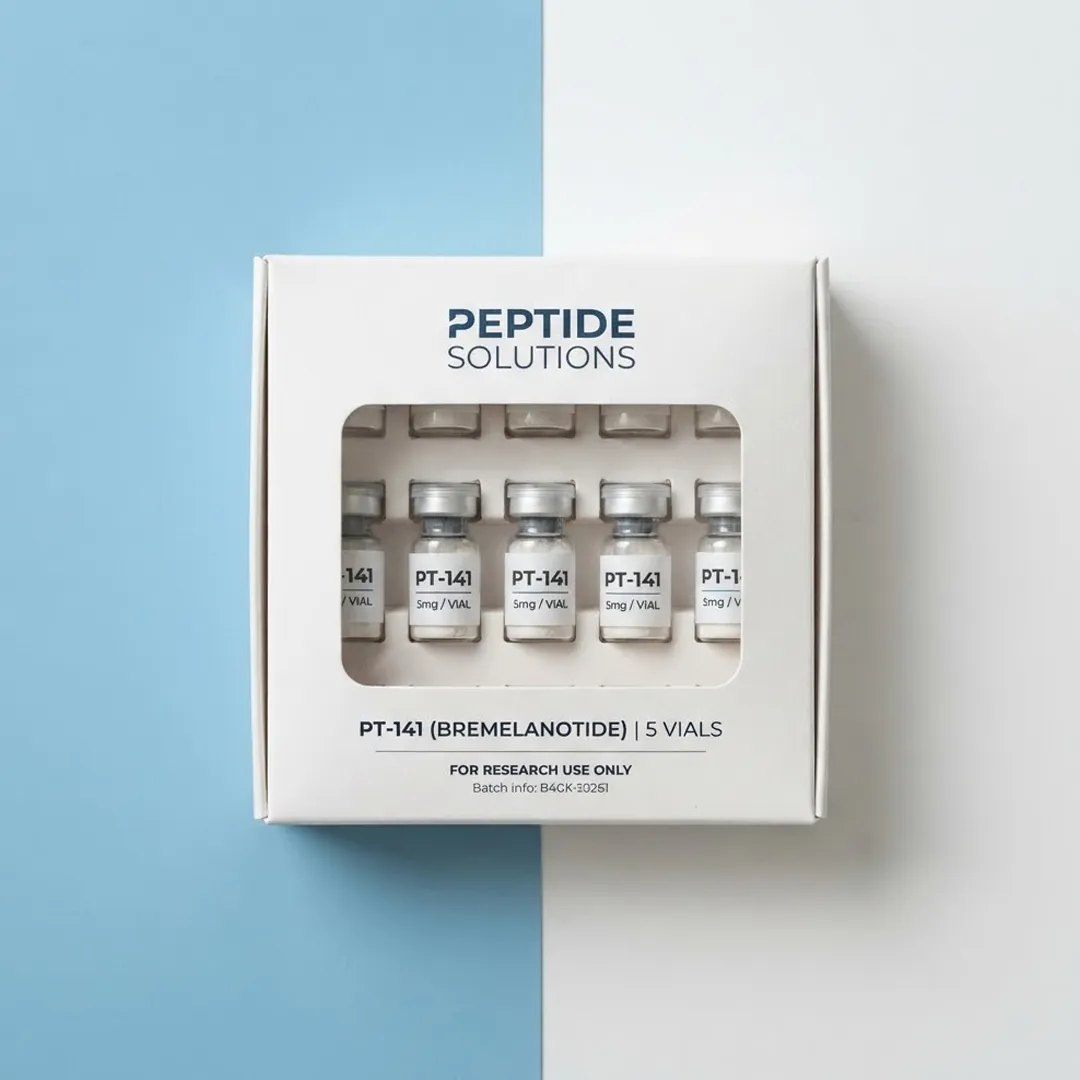

The opening is cut by the same die that cuts the carton. A clear film patch is then applied to the inside of the panel, glued around the opening edge, before the carton is folded and glued.

Film choice matters more than it appears. Standard PET is clear and cheap. Anti-scratch films resist handling marks on retail shelves. Recycled and paper-based alternatives exist but reduce clarity, so we will show you samples rather than describe them.

• Film patch — Applied inside the panel; the glue line sits behind the printed border around the opening.
• Open die-cut — No film at all. Cheaper and fully recyclable, but leaves the contents exposed to dust.
• Film thickness — Heavier films stay flatter across large openings; thin films can ripple.
• Border allowance — A printed border of a few millimetres around the opening hides the glue line.

Where to put the window

This is the decision that separates a window box that survives shipping from one that arrives crushed.

• Away from corners — Corners carry the load in a drop. A window that reaches a corner removes the board doing that work.
• Centred on the panel — Leaves a continuous frame of board around the opening, which acts as a structural ring.
• Not on the load-bearing face — On a box stacked upright, keep the window off the top and bottom panels.
• Sized to the contents — A window slightly smaller than the vial row looks deliberate; one slightly larger looks like a mistake.

What the customer actually sees

A window only works if what is behind it is worth seeing, which is why insert choice is part of the window decision.

• Moulded tray — Holds every vial at the same height and angle. The best partner for a window.
• Foam with a flush surface — A clean, dark background that makes vial labels stand out.
• Die-cut platform — Adequate, though vial heights can vary slightly, which shows through a window.
• No insert — Never, on a window box. A vial leaning against the film is immediately visible.

Where every vial has to sit at exactly the same height behind the film, a formed tray is the reliable answer — see peptide boxes with blister or moulded tray.

Window shapes

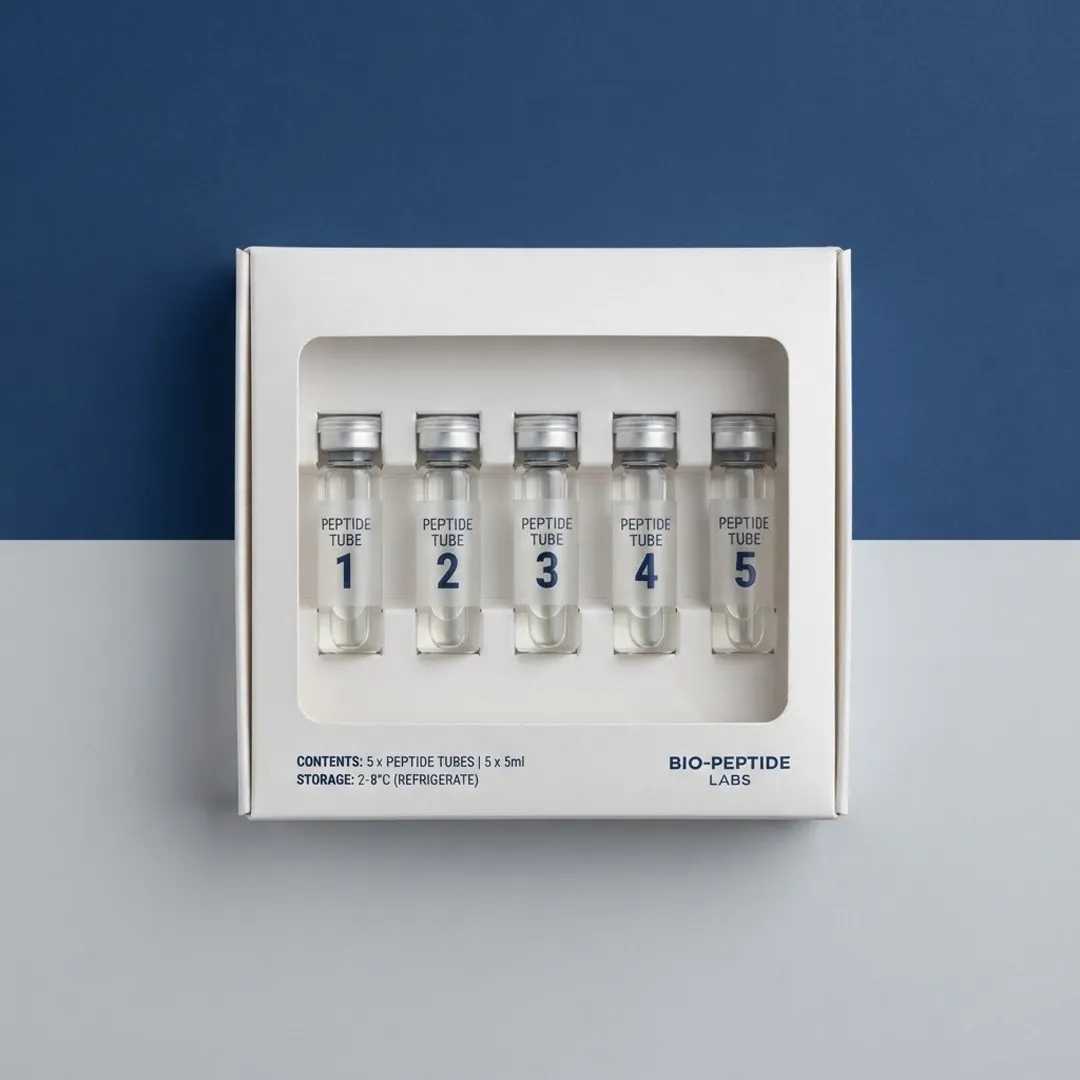

• Rectangular — The default. Cheapest to die-cut and structurally the most predictable.
• Rounded rectangle — Softer, and slightly stronger, because rounded corners resist tearing better than sharp ones.
• Shaped or logo window — A die-cut in a brand shape. Effective, but check the tearing risk on tight internal angles.
• Full-panel window — Almost the entire face in film. Striking, and structurally the weakest option.
• Side window — A narrow window on the side panel, showing the vial row in profile.

Materials and structures

• SBS paperboard carton — The usual host for a window; clean white board frames the opening well.
• Rigid box lid — A window cut through greyboard and wrap. The edge finish matters and is checked on sample.
• Sleeve — A window in the sleeve of a sleeve-and-tray box, showing the tray behind it.
• E-flute corrugated — Possible, though the cut edge shows the flute structure.
• Kraft board — A strong contrast between brown board and a clear window.

Removing board from a panel costs stiffness, so the caliper often has to rise to compensate — how caliper is specified against panel span is covered in the materials reference.

Printing around a window

• CMYK process — Full-colour artwork on the remaining panel area.
• PMS spot colour — A solid border colour around the opening keeps the window edge crisp.
• Print-to-die registration — The critical variable on window work — the printed border must align with the cut.
• Inside printing — Visible through the window on the opposite inner panel; occasionally used as a backdrop.

Finishing

• Matte lamination — Contrasts well with the gloss of the film, making the window read as intentional.
• Gloss lamination — Blends with the film so the whole face reads as one surface.
• Spot UV around the opening — A gloss frame that echoes the window.
• Foil border — A metallic frame around the opening; effective on premium retail packs.
• Aqueous coating — Where a laminate film would complicate recycling.

Ordering a window box

• 1. Structure first — A window is added to a structure, so choose the box before the window.
• 2. Window position and size — We will flag any placement that weakens a corner or a load-bearing face.
• 3. Film choice — Standard, anti-scratch or open die-cut; we send samples.
• 4. Sample — A loaded sample shows exactly what the customer will see through the opening.
• 5. Production — Printed, laminated, die-cut, film patched, glued and packed flat.

Artwork guidance

• Allow a printed border of at least 3 mm around the opening to hide the film glue line.
• Do not place small type immediately beside the cut — registration tolerance will make spacing look uneven.
• Mark the window as a separate die layer in your artwork file, not as a white shape.
• Check what is directly behind the window on the opposite inner panel.
• Artwork arrives as print-ready PDF with 3 mm bleed, outlined type and 300 dpi links.

Setting up a window correctly in the artwork file is one of the most common places files go wrong — the layer conventions we need are on the artwork guidelines page.

Quality control

• Print-to-die registration is checked continuously; a shifted border is the classic window box defect.
• Film adhesion is peel-tested around the full opening perimeter.
• Film clarity is inspected for scratches and haze picked up during production.
• Loaded samples are checked so no vial leans against the film.
• Cartons are erected and checked for square, since a window panel flexes more.

Shipping window boxes

• Window panels are the weakest face — outer cases are packed so windows do not bear on each other.
• Flat-packed cartons ship with the film already applied.
• Film can mark against rough surfaces, so interleaving is used where needed.
• Nationwide delivery across the United States.
