Custom 4-Vial Kit Boxes

Layout is the design decision

A 2 × 2 layout gives a compact, near-square box that stacks and ships well. A 1 × 4 layout gives a long, shallow box that opens like a display and naturally implies an order of use. Neither is better; they answer different questions.

The practical constraint is shipping. A single row of four 5ml vials makes a box roughly 125 mm long, which pushes it out of the smallest carrier bands. A 2 × 2 of the same vials is around 60 mm square, and the cost difference over a production run is real.

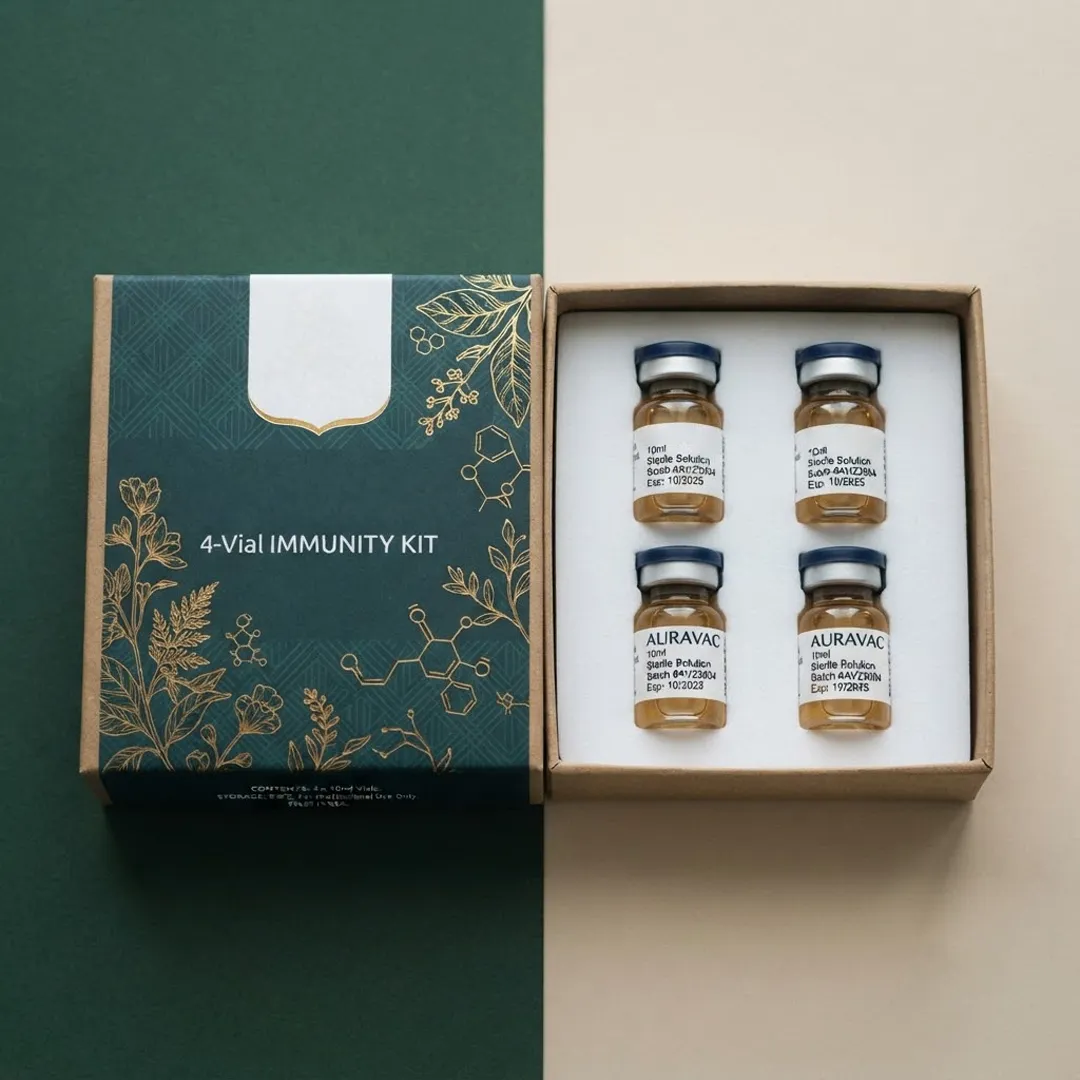

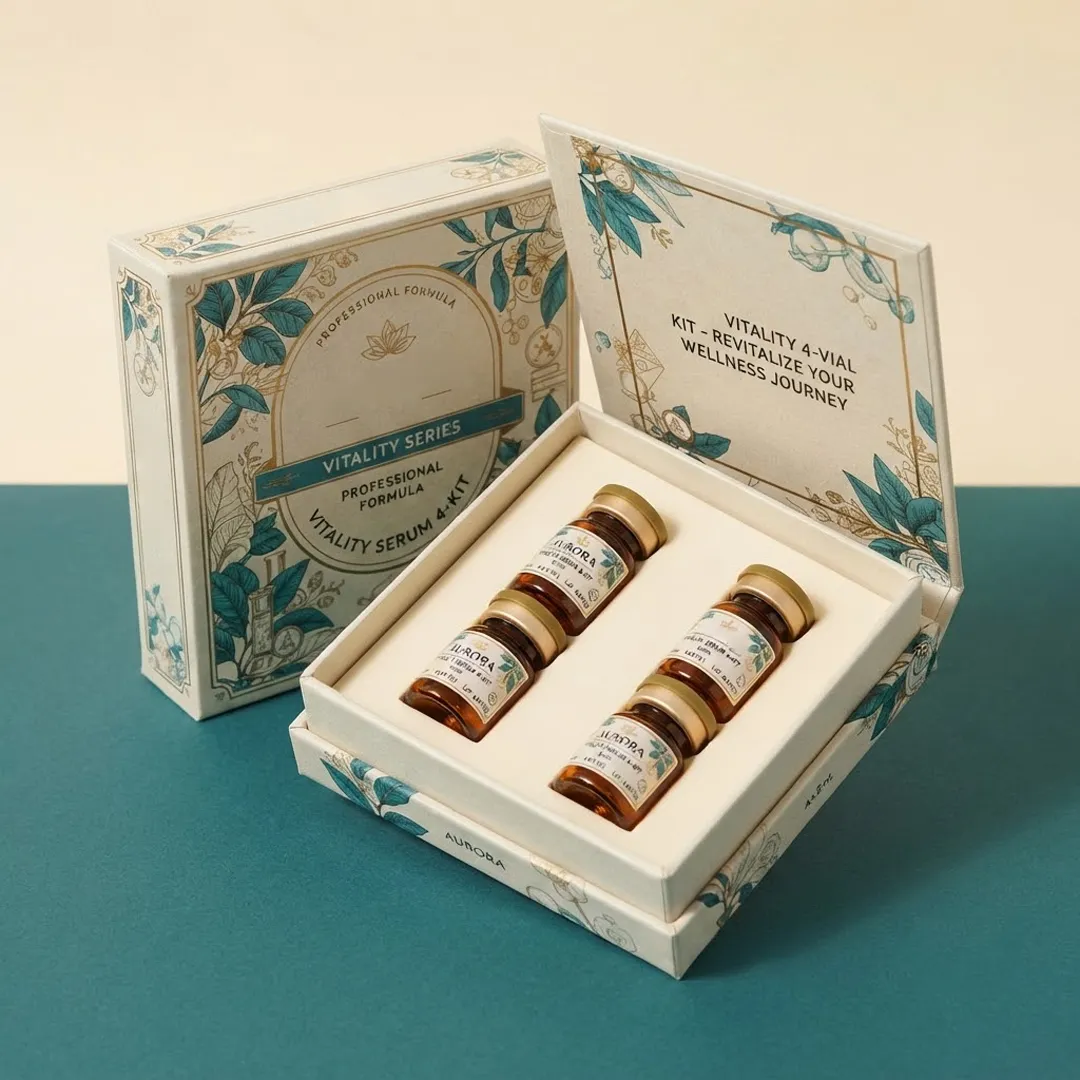

• 2 × 2 square — Most efficient to ship and to stack. Reads as a set of equals.
• 1 × 4 row — Reads as a sequence. Better for protocols with an order, worse for shipping cost.
• 4 in a diamond — An offset arrangement that can shave width when vials are wide relative to the box.
• Mixed component layout — Three vials plus a syringe channel, or two vials plus two ampoules.

Who buys 4-vial kits

• Protocol and course sets — Where four vials are used in a defined order over a period.
• Multi-product wellness kits — Four different formulations presented together as a range.
• Sampler and starter packs — A trial-size set introducing a customer to a product line.
• Clinic dispensing sets — Four units issued together, often over-labelled at dispensing.

Where the four vials are different products rather than four of the same, matching vial labels do more for clarity than anything printed on the box — see custom peptide vial labels for variable-data options that let each vial differ.

Marking sequence and position

With four cavities, the user has to know which is which. This is where a kit box either works or quietly confuses people.

• Printed insert — Numbers or names printed directly beside each cavity — the clearest method, and the cheapest.
• Printed inner lid — A diagram or list on the lid that maps to the cavity positions below.
• Colour-coded cavities — Different insert colours or printed rings, keyed to the vial labels.
• Debossed numbering — On foam inserts, numbers can be cut into the foam surface itself.

Box sizes for four vials

• Four 2ml vials, 2 × 2 — Commonly around 50 × 50 × 55 mm internal.
• Four 3ml vials, 2 × 2 — Commonly around 50 × 50 × 62 mm internal.
• Four 5ml vials, 2 × 2 — Commonly around 62 × 62 × 55 mm internal.
• Four 5ml vials, 1 × 4 — Commonly around 125 × 32 × 55 mm internal.
• Four 10ml vials, 2 × 2 — Commonly around 70 × 70 × 62 mm internal, with partitions.

Those internal figures assume a standard vial for each size; if yours differ, the method in our note on taking vial measurements will give you the right starting numbers.

Materials at this weight

Four filled vials is enough weight that a plain tuck carton starts to feel inadequate, particularly at 5ml and above.

• Rigid chipboard — The usual choice. Walls stay square under load and the box survives repeated opening.
• Heavier SBS paperboard — Works for 2ml and 3ml kits, ideally with an auto-lock bottom.
• Kraft paperboard — For a plainer, more utilitarian kit look.
• Corrugated board — Only if the kit is a shipping unit rather than a presentation unit.
• Recyclable paper-based stock — Available throughout, best paired with paperboard partitions.

Insert options for four cavities

• Single foam block, four cavities — One piece, no assembly, and the cleanest look when the box opens.
• Folded partitions — A four-cell grid. Cheaper than foam at this count and fully recyclable.
• Moulded tray — Four formed pockets; the best option if the kit sits behind a window.
• Die-cut platform — A four-hole deck. Adequate for light vials inside an outer case.

At four cavities the cost gap between foam and partitions narrows considerably. The custom box inserts page compares them properly, including how each handles a box that is opened repeatedly.

Printing

• CMYK process — Full-colour kit artwork including any diagram on the inner lid.
• PMS spot colour — Ties the kit to the rest of your range.
• Inside printing — The inner lid is prime space on a four-vial kit — it faces the user throughout.
• Printed inserts — Cavity numbering and short position labels.

Finishing

• Soft-touch coating — The pack is handled repeatedly over a course of use, so surface feel matters.
• Matte lamination — Clean, clinical and resistant to fingerprints.
• Foil stamping — On the lid, usually restricted to the logo.
• Spot UV — Effective over matte for a single graphic element.
• Emboss and deboss — Rigid board holds an impression better than folding board at this size.

Structures

• Two-piece lid and base — Square, strong, and simple to load on a packing line.
• Rigid magnetic lid — Best where the box is reopened over a period of use.
• Book-style hinged box — Opens flat, showing all four cavities and the printed lid at once.
• Sleeve and tray — A four-cavity tray sliding out of a printed sleeve.
• Auto-lock carton — The economical option where the kit ships inside a case.

Ordering a 4-vial kit

• 1. Components and order of use — Send the vials and tell us whether the sequence matters.
• 2. Layout decision — We quote both 2 × 2 and 1 × 4 so the shipping cost difference is visible.
• 3. Insert and structure — Specified against the vial weight and how the kit is used.
• 4. Die line, proof, sample — Including a printed insert proof if the cavities are numbered.
• 5. Production — Printed, cut, assembled and packed.

Artwork guidance

• If the inner lid carries a diagram, make sure it matches the physical cavity order — including which way the box opens.
• Cavity numbering on the insert must be laid out on the insert die line, not the box die line.
• Allow for the insert flange, which hides a few millimetres around the inside edge.
• Supply the file as print-ready PDF — 3 mm bleed, type outlined, images at 300 dpi.

Quality control

• All four cavities are fit-tested, not just one.
• Printed insert numbering is checked against the approved cavity map.
• Partition grids are checked for square assembly.
• Loaded samples are inverted as a movement check.
• Colour and count are verified before packing.

Shipping

• A 2 × 2 kit ships materially cheaper than a 1 × 4 kit of the same vials — we will show you the figures.
• Rigid kits ship assembled; cartons and partitions ship flat.
• Outer cases are specified to the loaded weight of the kit.
• Nationwide delivery across the United States.
