Peptide Boxes with EVA Foam Insert

How foam holds a vial

The cavity is cut fractionally smaller than the vial body. Inserting the vial compresses the foam wall slightly, and the wall pushes back. That interference fit is what holds the vial — not the depth of the hole.

Get the interference wrong in either direction and the insert fails. Too little and the vial drops out when inverted. Too much and the packer has to force the vial in, which is how crimp seals get damaged and how packing lines slow down.

• Interference fit — A small negative clearance against the vial body diameter, tuned to the foam density.
• Cavity depth — Set to support a useful proportion of the vial height — more for heavier vials.
• Wall thickness between cavities — Thick enough that adjacent vials cannot make contact under impact.
• Lid pad — An optional thin foam layer in the lid removing the last of the vertical movement.

Foam density and why it matters

Density is the property that decides whether the insert works, and it is the one most often left unspecified.

• Too soft — The cavity relaxes over time and under vibration. A heavy vial slowly settles and works loose.
• Too firm — Insertion becomes difficult, the cavity edge tears at the mouth, and removal is awkward for the end user.
• Matched to vial weight — A 2ml vial and a filled 10ml vial want different densities in the same box size.
• Matched to handling — A pack opened once can be firmer than a pack the customer opens repeatedly.

We select density against your vial and confirm it on a physical sample. For heavier formats the reasoning is set out in more detail on the 10ml peptide vial boxes page.

When foam is the right answer

• The box is posted on its own — With no outer case, the insert is the only impact protection there is.
• The vial is heavy — Filled 10ml vials carry enough momentum that a paper hole will tear.
• Presentation matters — A flush black foam surface makes vial labels read cleanly on opening.

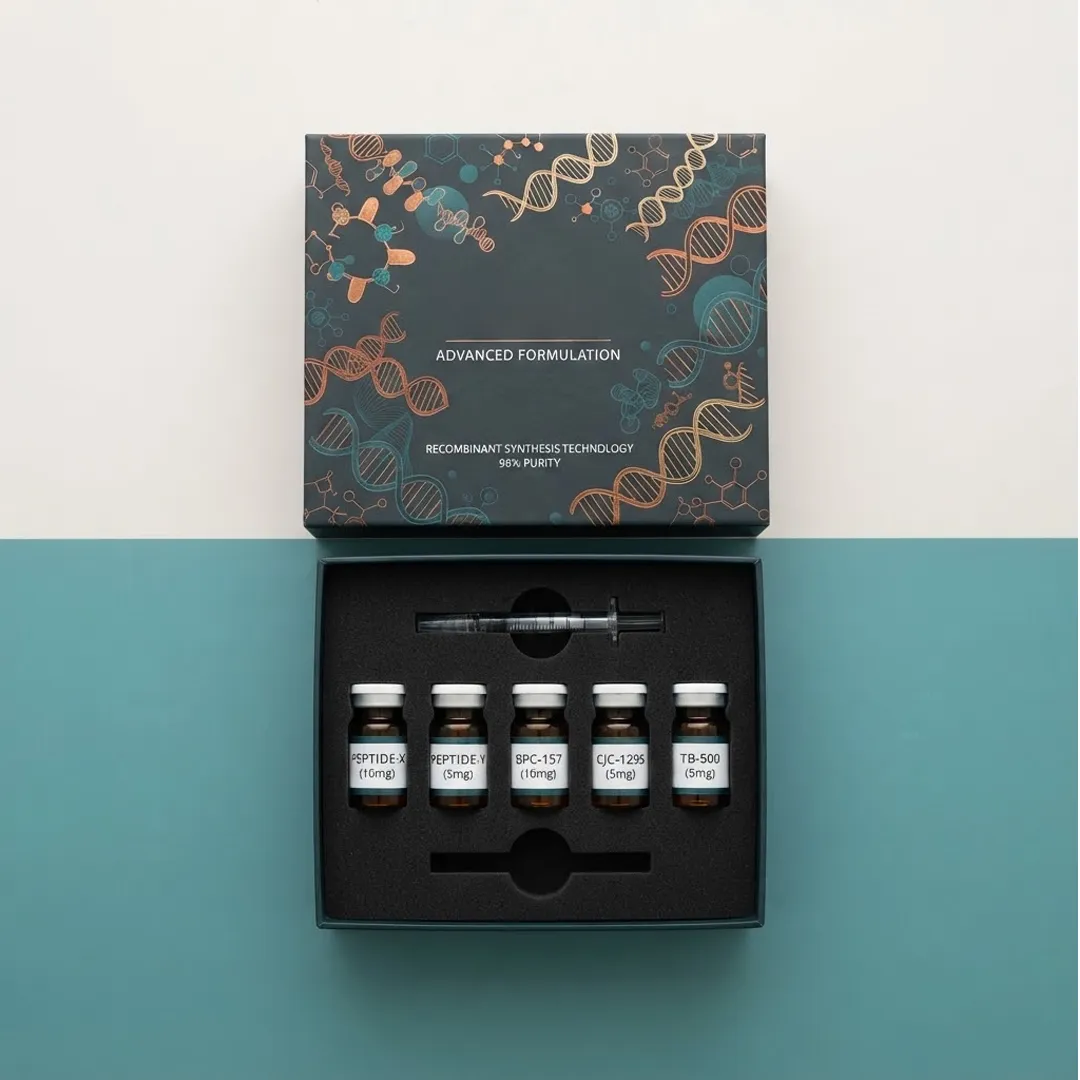

• Mixed components — One block can hold a vial, a syringe and an ampoule in three different cavity profiles.
• Repeated opening — Foam tolerates vials being removed and replaced far better than a die-cut hole.

When to choose something else

Being direct about this saves customers money, so we would rather say it plainly.

• Light vials in an outer case — A die-cut cardboard insert does the same job for considerably less.
• Single-stream recyclability — Foam is not paper. If the whole pack must recycle together, use paperboard.
• High counts — At ten cavities and above, a partition grid or tray usually gives better value.
• Contents must be visible — A moulded tray presents better behind a window than a foam block does.

Cavity shapes we cut

• Straight round cavity — For standard crimp-sealed vials.
• Stepped cavity — A wider mouth for the cap and a narrower body section below, giving grip without forcing the cap through.
• Syringe channel — A long slot with a widened section for the plunger flange.
• Ampoule cradle — A curved trough for components with no flat base.
• Finger relief — A small scallop beside each cavity so vials can be lifted out without tools.

Finger relief is the detail most often left out and most often complained about. If the end user cannot get the vial out easily, the insert has failed regardless of how well it protects.

Colours and surface finish

• Black — The default. Recedes visually, makes labelled vials the focus.
• White — Clean and clinical, though it shows handling marks.
• Brand-matched colours — Available depending on quantity; we advise choosing against a physical wrap swatch.
• Laminated top layer — A thin contrasting sheet bonded to the foam surface for a two-tone effect.

Foam colour is chosen against the box interior rather than the artwork file, which is one reason premium builds are specified from physical swatches rather than screen proofs.

Which boxes take a foam insert

• Rigid magnetic boxes — The most common pairing; the block drops into the base.
• Two-piece lid and base — An open base is the easiest structure to load a foam block into.
• Flip top boxes — Foam block in the base, optional pad in the lid.

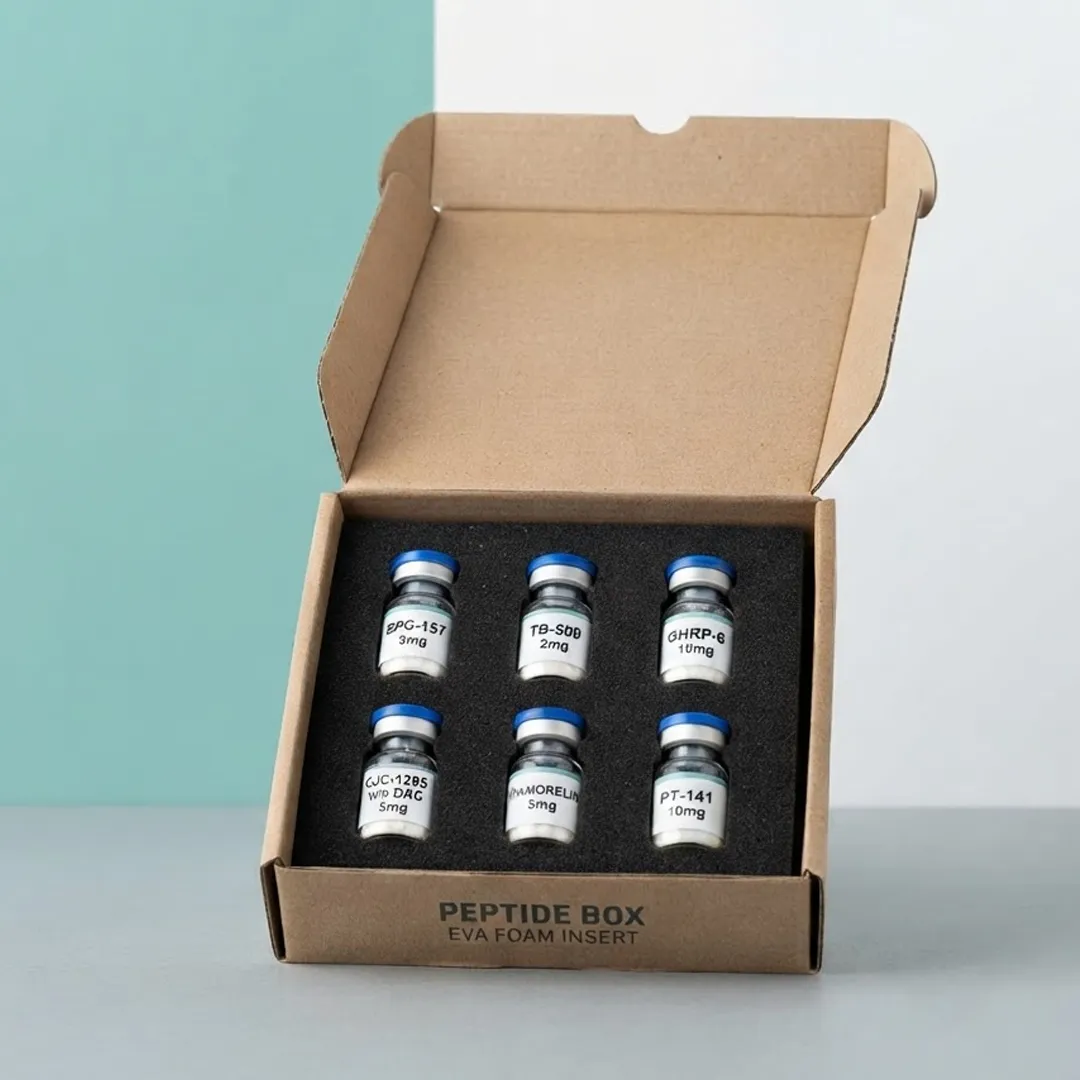

• Corrugated mailers — For direct-to-customer packs where the mailer is the only box.
• Folding cartons — Possible, though it removes the flat-shipping advantage of a folding carton.

Ordering foam inserts

• 1. Send the components — All of them — vial, syringe, ampoule, whatever shares the block.
• 2. Confirm the box — The insert is cut to the box interior, so the box specification comes first.
• 3. Density selection — We propose a density against vial weight and handling frequency.
• 4. Sample — A cut sample with your actual vial seated in it. Insertion and removal are both checked.
• 5. Production — Foam cut, checked and either supplied loose or fitted into the boxes.

Artwork and specification notes

• Foam inserts are specified by drawing, not by artwork file — send dimensions or components, not a PDF.
• If the foam surface will be printed or laminated, that artwork is a separate file.
• Tell us the label position on the vial if the label must remain visible above the cavity.
• Specify whether the end user or a packing line will load the vials — it changes the fit tolerance.

Quality control

• Insertion and removal force are both checked on sample cavities.
• Cavity depth and diameter are measured against the approved sample, not the drawing alone.
• Wall thickness between cavities is verified.
• Loaded boxes are inverted and shaken.
• Cut edges are inspected for tearing or compression damage.

Packing and delivery

• Foam is supplied cut to size, either loose or pre-fitted into the boxes.
• Blocks are packed flat and interleaved to prevent compression marking.
• Foam takes volume, so it is worth planning storage space before ordering.
• Nationwide delivery across the United States.
